Durable 850mm HDPE PP Extrusion Sheet Die Head Mould for Customizable Needs
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | EKO |
| Model Number: | YH850 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,650.00/sets 1-1 sets |
|
Detail Information |
|||
| Shaping Mode: | Plastic Extrusion | Product Material: | HDPE |
|---|---|---|---|
| Product: | Plate And Sheet | Heating Type: | Electric Heater |
| Mould Material: | 1.2311H | After-sales Service: | Engineers Are Available To Serve Overseas |
| Size: | 850 Or Customerized | Surface Treatment: | Chrome Plating |
Product Description
Products Description

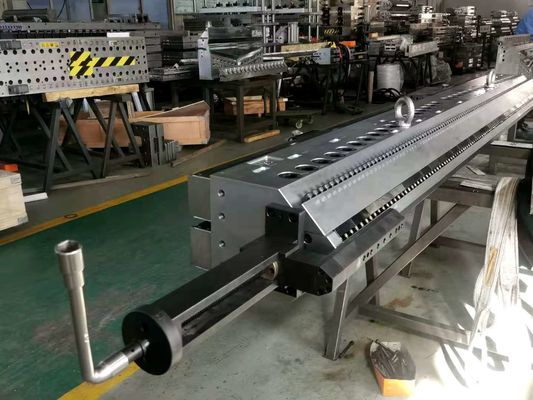

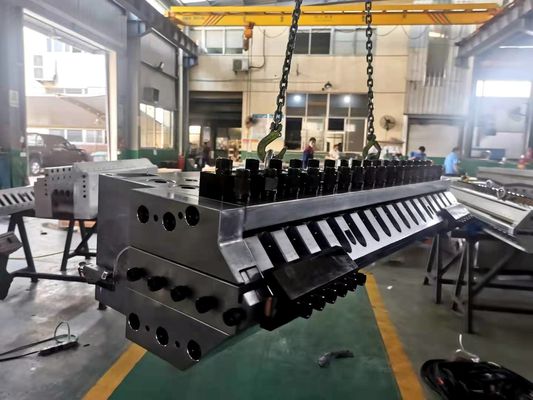

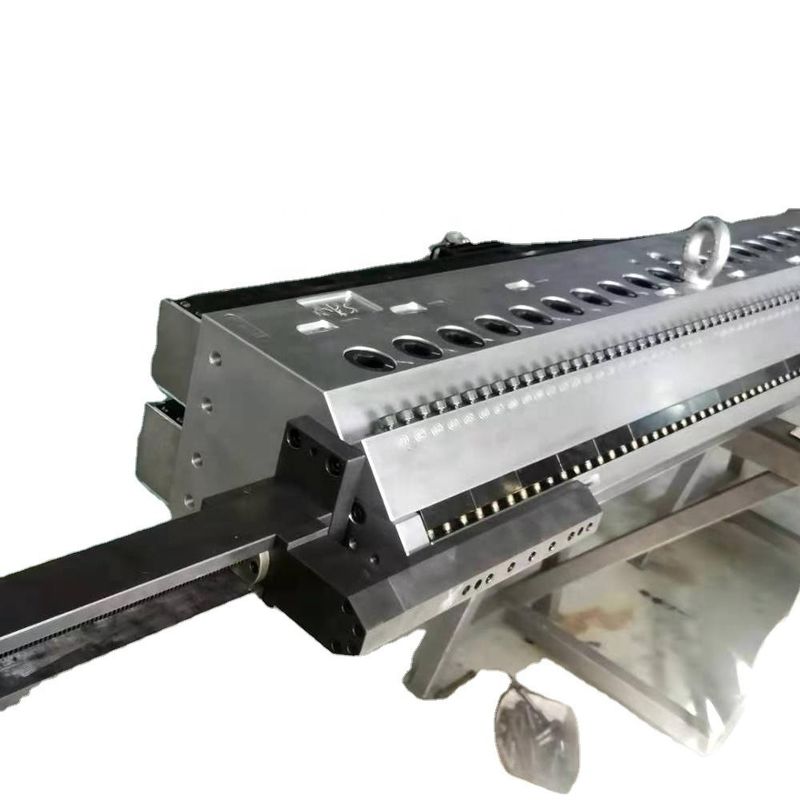

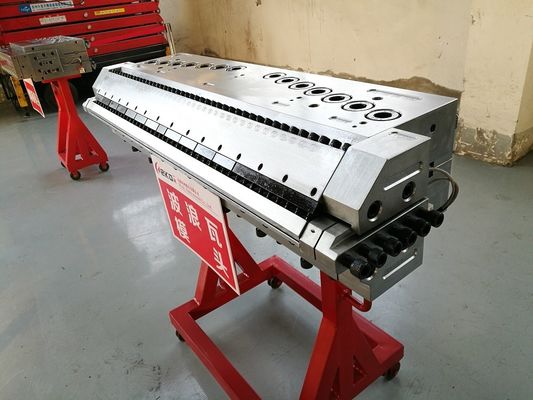

850mm PP/HDPE sheet die mould
1. Technical Parameters | ||||
No. | Name | Specification | ||
1 | Model | YH-850 | ||
2 | Polymer to be processed | PP/HDPE | ||
3 | die lip width | 850mm | ||
4 | Final product width | 750mm | ||
5 | Deckle style | semi-automatic | ||
6 | Die lip gap | 2-4 mm and 4-12 mm | ||
7 | Die lip qty | 2 set, upper is flexible adjustable with 90 chock bar, lower can be remove and exchanged | ||
8 | Flow channel | Coat hanger type | ||
9 | Mould material | 1.2311H | ||
10 | Choke bar | 90 degree | ||
Application
Title goes here.

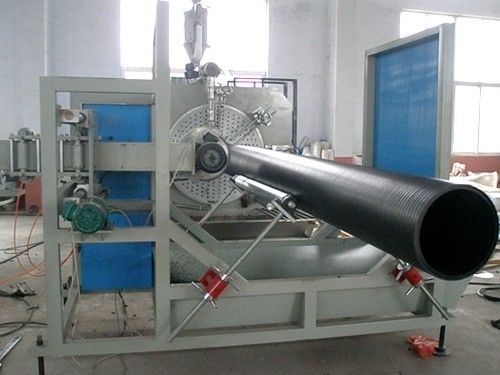

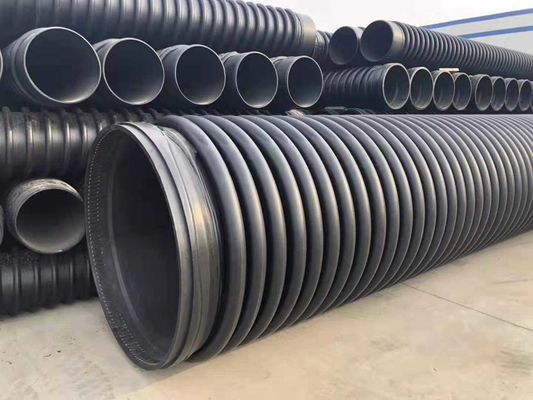

This mould is used to produce the outer layer of this kind of hollow construction pipe.
Recommend Products
Product Package
Wrapped with film then packed by standard export wooden pallets or wooden boxes.
