High Productivity Counter-rotating Conical Twin-screw PVC Ceiling Panel Making Machine
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | EKO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | NON-FUMIGATION WOODEN CASES |
| Supply Ability: | 150 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Plastic Processed: | PE, PP, PVC, ABS, Polystyrene, PA, EVA, FRPP/PVC, HDPE, PPR, Wood-plastic, ABS/PP, HDPE/PP, PE/PP, Lldpe, LDPE |
|---|---|---|---|
| Application: | Bar, Wire, PIPE, Granules, Sheet, Film, Profile, Plates, Filament, Pelletizing, PE Great Wall Board | Screw Design: | Double-screw |
| Twin Screw Type: | Counter-rotating Conical Twin-screw | Screw Material: | 38CrMoAlA |
| Screw Diameter (mm): | 65/132mm | Screw L/D Ratio: | 28:1 |
| Screw Speed (rpm): | 34 Rpm | Showroom Location: | None, China |
| Voltage: | 415v | Dimension(L*W*H): | 4200mm 1500mm 2100mm |
| Power (kW): | 37 | Weight: | 4000 KG |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | More Than 5 Years | Core Components: | Motor, PLC, Gearbox, Screw |
| Machinery Test Report: | Provided | Name: | PE Wood Plastic Co-extrusion Extrusion Machine Line |
| Raw Material: | PE Wood Co-extrusion | Usage: | Plastic Extrusion |
| Processing Type: | Co-extrustion | Keywords: | PE Co-extrusion Extruder Line |
| Product Type: | Extrusion Production | Final Product: | PE Great Wall Board |
| Product Name: | Great Wall Board | Type: | PE CO- Extrusion |
| Color: | Customers' Require | Marketing Type: | New Product 2022 |
| Port: | Shanghai Port | ||
Product Description
Products Description

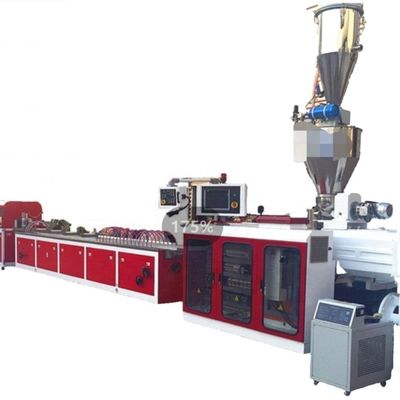

65/132- PE Wood plastic co-extrusion machine line
List of the line | ||||
1 | Vacuum Feeder device | 1set | ||
2 | SJZ65/132 conical twin screw extruder | 1set | ||
3 | YFD240 Vacumm calibration table | 1set | ||
4 | YFG240 Cutter | 1set | ||
5 | YFF240 Stacker | 1set | ||
Technical specification
Basic informationMold provided by customer
Capacity: 120-200kg/h
Calcium : Customer decide
The output capacity varies with the materials and the operation conditions.
Line speed: 0.5～4.6m/min
(The line speed varies with the thickness and operation condition)
The height of the centerline of the extruder: 1050mm
Operation direction: From right to Left
Installation condition
PowerStandard: 415V, 3-phase, 50HZ
Control voltage: 415V
Protection method: Earth connection
Compressed air
Pressure: 0.4~0.6Mpa
Cold water
Pressure: 0.2~0.4Mpa
Temperature: 10 ~ 15℃
Vacuum feeder device
Screw & Barrel.
Screw diameter: Ф65/132mm
PE material special designed for screw with rotation speed of 1 ~ 34.7 r/min
Screw material: 38CrMoAlA, nitrogen treatment, with the thickness: 0.5~0.7mm, hardness: HV740~940.
Barrel material: 38CrMoAlA, nitrogen treatment, with the thickness: 0.6~0.7mm, hardness ≥HV940~1100.

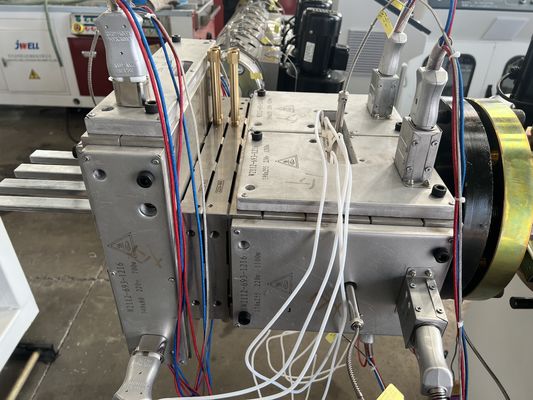

Heating unit: cast aluminium heater + stainless steel covering + cooling fan
Heating zone quantity: 4 with total power 21kw Temperature range: 50~300℃
Cooling fan power: 3 х 0.55KW
Screw&Barrel bi-metal treatment
Vacuum exhaust system
Vacuum pump: 1 set
Vacuum pump power: 3 phase asynchronous motor 4 KW
Vacuum degree: 0 - 0.075 MPa
PE material special designed for screw with rotation speed of 1 ~ 34.7 r/min
Screw material: 38CrMoAlA, nitrogen treatment, with the thickness: 0.5~0.7mm, hardness: HV740~940.
Barrel material: 38CrMoAlA, nitrogen treatment, with the thickness: 0.6~0.7mm, hardness ≥HV940~1100.
Heating unit: cast aluminium heater + stainless steel covering + cooling fan
Heating zone quantity: 4 with total power 21kw Temperature range: 50~300℃
Cooling fan power: 3 х 0.55KW
Screw&Barrel bi-metal treatment
Vacuum exhaust system
Vacuum pump: 1 set
Vacuum pump power: 3 phase asynchronous motor 4 KW
Vacuum degree: 0 - 0.075 MPa
Dosing feeding System
With stainless steal hopper and forced mixing unit
Feeding motor power: 1.5KW, 3 phase asynchronous motor
Controlled by Imported brand AC frequency converter
Transmission system
High torque output
Thrust bearing domestic
Water cooling device
Gear material: 20CrMoTi
Combination of hard-toothed surface, nitriding gear grinding processing
Adopting Germany technology, with a long service life, low noise and low heating
Motor directly connected to gearbox through coupling
Vertical design, compact structure
Feeding motor power: 1.5KW, 3 phase asynchronous motor
Controlled by Imported brand AC frequency converter
Transmission system
High torque output
Thrust bearing domestic
Water cooling device
Gear material: 20CrMoTi
Combination of hard-toothed surface, nitriding gear grinding processing
Adopting Germany technology, with a long service life, low noise and low heating
Motor directly connected to gearbox through coupling
Vertical design, compact structure
Main motor systemMain motor system
Motor: WEG motor or SIEMENS BEIDE AC motor, 37KW
Main motor adjustment: by AC with imported ABB brand
Outer size: 4200 × 1500 × 2100mm
Center height: 1050mm
Weight of extruder : 4000kg
Electric control system
Controlled by B&R PLC model computer controlling cabinet. All the parameters can be defined on the operation table, such as the rotation speed, temperature. Also it has the following alarm functions:
1. Overload of the motor.
2. After the motor has been started, if the maximum torque is more than 105% of that is permitted and if this condition lasts more than 3 minutes, the alarm will start and then stop the machine.
Main motor adjustment: by AC with imported ABB brand
Outer size: 4200 × 1500 × 2100mm
Center height: 1050mm
Weight of extruder : 4000kg
Electric control system
Controlled by B&R PLC model computer controlling cabinet. All the parameters can be defined on the operation table, such as the rotation speed, temperature. Also it has the following alarm functions:
1. Overload of the motor.
2. After the motor has been started, if the maximum torque is more than 105% of that is permitted and if this condition lasts more than 3 minutes, the alarm will start and then stop the machine.
PLC: B&R
Circuit breaker: ABB/SCHNEIDER
Relay: IDEC/SCHNEIDER/OMRON
Contractor: SIEMENS/SCHNEIDER
Air switch: CHNT/SCHNEIDER
Prepare 5 heating zones for die
PID Temperature control
Emergency stop devices and alarm systems
Alarm system detection range
Over current protection alarm function
Screw loose off parking automatic alarm functionMotor: WEG motor or SIEMENS BEIDE AC motor, 37KW
Relay: IDEC/SCHNEIDER/OMRON
Contractor: SIEMENS/SCHNEIDER
Air switch: CHNT/SCHNEIDER
Prepare 5 heating zones for die
PID Temperature control
Emergency stop devices and alarm systems
Alarm system detection range
Over current protection alarm function
Screw loose off parking automatic alarm functionMotor: WEG motor or SIEMENS BEIDE AC motor, 37KW

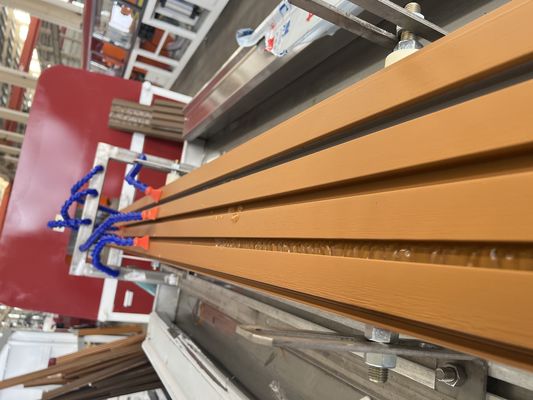

Vacuum calibration tableVacuum calibration table
Calibration tanks and basin are made of stainless steel
Table length: 4500mm
Table width : 1100mm
Distance between aluminum track: 320mm
Water pump and quantity:4KW x 1
Quantity of water nozzle: 20 pcs (marked in blue)
Mould supporter: casting aluminum bar with T shaped slot for fixing mould tool. Supporting rack and water pipe are integrated,
which is made of stainless steel tube.
Electric controlling cabinet and panel with waterproof covering
With air fan device (0.75kw) for drying wa（including connect flange）ter on the product surface
Lifting device for calibration: calibration and haul-off are connected by lead screw bolt with deceleration motor of 0.75kw.
Fitted with a device for vertical adjustment: Motor drive.
Controlled by two screw motor, four mini screw reducer drive
Fitted with a device for horizontal adjustment and can be adjusted by hand
Table length: 4500mm
Table width : 1100mm
Distance between aluminum track: 320mm
Water pump and quantity:4KW x 1
Quantity of water nozzle: 20 pcs (marked in blue)
Mould supporter: casting aluminum bar with T shaped slot for fixing mould tool. Supporting rack and water pipe are integrated,
which is made of stainless steel tube.
Electric controlling cabinet and panel with waterproof covering
With air fan device (0.75kw) for drying wa（including connect flange）ter on the product surface
Lifting device for calibration: calibration and haul-off are connected by lead screw bolt with deceleration motor of 0.75kw.
Fitted with a device for vertical adjustment: Motor drive.
Controlled by two screw motor, four mini screw reducer drive
Fitted with a device for horizontal adjustment and can be adjusted by hand

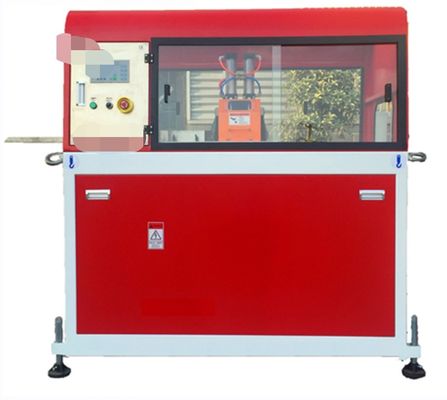

Cutter
Cutting motor power: 2.2KW
Max. Cutting width: 240mm
Max. Cutter lifting height: 80 mm
Power of sucking-dust-fan:2.2 KW
Cutting saw: Alloy steel, specially for cutting PVC profile – O.D. 450mm
Rack moved by reduction motor and knife lifting and clamping moved by pneumatic
Manual or automatic cutting type
With proximity switch meter-calculating device
Foreign famous brand electrical
Max. Cutting width: 240mm
Max. Cutter lifting height: 80 mm
Power of sucking-dust-fan:2.2 KW
Cutting saw: Alloy steel, specially for cutting PVC profile – O.D. 450mm
Rack moved by reduction motor and knife lifting and clamping moved by pneumatic
Manual or automatic cutting type
With proximity switch meter-calculating device
Foreign famous brand electrical
StackerStacker
Length of stacker: 6m
With proximity switch meter-calculating device
Form of stacker: Disassembled
Stacker products contact parts are covered by the rubber block
With proximity switch meter-calculating device
Form of stacker: Disassembled
Stacker products contact parts are covered by the rubber block
Spare parts
SJZ65/132 Concial twin screw extruder | Qty. | ||
1 | Mercury temperature meter 0-300℃ | 4 pcs | |
2 | High-temperature cable | 20m | |
3 | screw-axial adjusted washer | 1 set | |
4 | Thermo-couple | 5 pcs | |
5 | Heater of Joint core | 1 pc | |
6 | Potentiometer | 1 pc | |
7 | Oil seal of high-speed shaft | 1 pc | |
YF240 extrusion accessory | Qty. | ||
1 | ￠8 T-type adapter | 3 pcs | |
2 | Ball valve model A,B | 5pcs/each | |
3 | ￠8 Gas pipe | 30m | |
4 | Limit switch | 2 pcs | |
5 | Quick-change adapter | 10 pcs | |
6 | Solenoid valve | 1 pc | |
Other parts | Qty | ||
1 | Cinqueofoil axial linker | 1 pc | |
2 | Speed meter for drawing unit | 1 pc | |
3 | Terminal adapter | 2 pcs | |
4 | 2-position 5-port solenoid valve | 2 pcs | |
5 | One-way throttle valve | 2 pcs | |

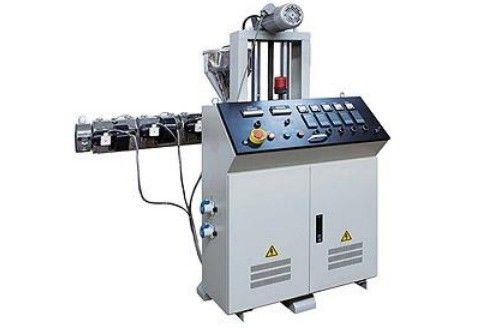

45/25 single screw extruder
output ：15 KG/H
including connect flange
Type | 45×25 | |
Screw | ||
Diameter | 45mm | |
L/D | 25:1 | |
Material | 38CrMoAlA | |
Treatment | Nitrided | |
Barrel | ||
Material | 38CrMoAlA | |
Treatment | Nitrided | |
Heating control zones | Four | |
Heating power | 2.3 KW×4 | |
Cooling system | By blower fan | |
Cooling power | 0.04KW×4 | |
Gearbox | ||
Material of the house | QT200 | |
Gear type | Helical gears | |
Material of the gear | 20CrMnTi | |
Heat treatment of the gear surface | Quenching | |
Bearings | Chinese famous bearing | |
Lubricating system | Splashing system | |
Feeding block | ||
Method | Water circled cooling system | |
Material | Q235 | |
Driving motor | ||
Method | AC motor | |
Power | 7.5 KW | |
Hopper | ||
Material | Stainless steel | |
1.Temperature is controlled by popular meter | ||
2.Electric part mainly adopts Schneider or CHIT | ||
3. Extruder speed regulation controlled by ABB Inverter | ||
4. Thermocouple adopts compensation lead avoid the loss of signal during transportation. | ||
spare part | ||
thermo-electric couple | 2sets | |
heating ring | 1 set | |

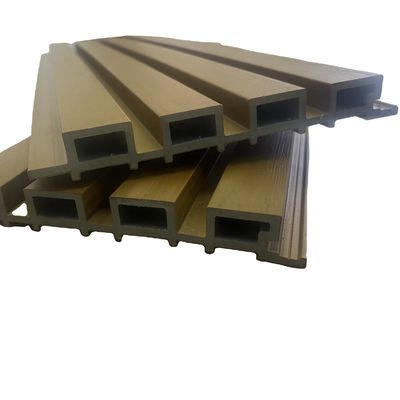

Finally Product
Company Profile
Development 1993--2018
1993---Set up
(One of the earliest extrusion mould pioneers in China) 2010---Produce wide board products
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould). 2013---Set up joint-venture in outer Mongolia
2002---Research and develop PVC WPC & PE mould 2013---Sales exceed 50 million yuan
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan 2014---Foreign trade sales exceed 50 million yuan
2004---Research PVC foam board 2016---Spread new product & technology of wall pane
2005---Sales exceed 10 million & New factory(15000m2) 2017---Set up (EKO)Shanghai Yuhao Plastics Co., Ltd
2007---Set up Shanghai eko Mould Co., Ltd 2017---Set up (EKO) Wuxi Jiuke Mould Co., Ltd
2008---Sales exceed 20 million yuan 2017---Sales exceed 80 million yuan
2009---Research foam board crust technology 2018---Unified use the brand-EKODevelopment
1993---Set up
(One of the earliest extrusion mould pioneers in China) 2010---Produce wide board products
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould). 2013---Set up joint-venture in outer Mongolia
2002---Research and develop PVC WPC & PE mould 2013---Sales exceed 50 million yuan
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan 2014---Foreign trade sales exceed 50 million yuan
2004---Research PVC foam board 2016---Spread new product & technology of wall pane
2005---Sales exceed 10 million & New factory(15000m2) 2017---Set up (EKO)Shanghai Yuhao Plastics Co., Ltd
2007---Set up Shanghai eko Mould Co., Ltd 2017---Set up (EKO) Wuxi Jiuke Mould Co., Ltd
2008---Sales exceed 20 million yuan 2017---Sales exceed 80 million yuan
2009---Research foam board crust technology 2018---Unified use the brand-EKODevelopment
Huangshi Hongda Plastic Mould Co., Ltd
Huangshi Hongda Plastic Mould Co., Ltd
(EKO)Huangshi Hongda Plastic Mould Co., Ltd, located in Huangshi, the City of Mould, which is the leading enterprise in the mould
industry. And its annual output can achieve 1,500 sets of mould.
industry. And its annual output can achieve 1,500 sets of mould.
(EKO)Shanghai Yuhao Plastics Co., Ltd
EKO)Shanghai Yuhao Plastics Co., Ltd
A trading company based on Hongda and Eko mould company, which has a wide range, good quality, reasonable prices and stylish
designs. Our products are extensively used in many different fields and industries.
melt blown non woven fabric melt blown
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs
designs. Our products are extensively used in many different fields and industries.
melt blown non woven fabric melt blown
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs
Customer Photos
OUR CUSTOMERS
melt blown non woven fabric melt blown
In China, our products can be found in all the cities.
In the world, our products are exported to over 40 countries and districts.
We are proud to have friends all over the world.
In China, our products can be found in all the cities.
In the world, our products are exported to over 40 countries and districts.
We are proud to have friends all over the world.
Our Service
As a professional extrusion mould manufact ure with twenty years of expreience accumulation. we can undertakes the whole
international extrusion projects and provides one-stop service and technology.We provide customers with raw material formula,
extrusion mould, die technology, spot operation and other all-round technology and services Our experienced technicians will give you the best service. We promise: In China, 360 days guarantee period, sending perfect
service to your factory within 48 hours.
international extrusion projects and provides one-stop service and technology.We provide customers with raw material formula,
extrusion mould, die technology, spot operation and other all-round technology and services Our experienced technicians will give you the best service. We promise: In China, 360 days guarantee period, sending perfect
service to your factory within 48 hours.
Package Material
FAQ
1. who are we?
We are based in Shanghai, China, start from 2017,sell to Southeast Asia(30.00%),South Asia(20.00%),Mid East(10.00%),Africa(10.00%),South America(5.00%),Eastern Asia(5.00%),North America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Domestic Market(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Oceania(1.00%),Central America(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Extrusion products,Chemical material and additives,Extrusion mould and parts,Extrusion machinery and parts,Other equipment
4. why should you buy from us not from other suppliers?
More than 20 years experience in mould research, development and manufacturing; well equipped testing and technical force; strong after sales service team; reasonable price and tailor-made designs; vast applications in different fields and well recognized.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
We are based in Shanghai, China, start from 2017,sell to Southeast Asia(30.00%),South Asia(20.00%),Mid East(10.00%),Africa(10.00%),South America(5.00%),Eastern Asia(5.00%),North America(5.00%),Northern Europe(5.00%),Eastern Europe(5.00%),Domestic Market(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Oceania(1.00%),Central America(1.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Extrusion products,Chemical material and additives,Extrusion mould and parts,Extrusion machinery and parts,Other equipment
4. why should you buy from us not from other suppliers?
More than 20 years experience in mould research, development and manufacturing; well equipped testing and technical force; strong after sales service team; reasonable price and tailor-made designs; vast applications in different fields and well recognized.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English
Contact with us
Shanghai Yuhao Plastic Co.,Ltd
Address: Huatai Center, JiangQiao Town, Jiangding area, Shanghai, China.melt blown non woven fabric melt blown
Contact person: Xavier Leng
Tel/wechat/whatsapp:
Contact person: Xavier Leng
Tel/wechat/whatsapp:
+86 18964066427
E-Mail: 801@hdeko.com
E-Mail: 801@hdeko.com
Want to Know more details about this product
