Professional Mould Maker for WPC/UPVC Hollow Door Extrusion Wide 1000mm Size
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Eko |
| Model Number: | 1000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00 - $24,000.00/sets |
|
Detail Information |
|||
| Shaping Mode: | Extrusion Mould | Product Material: | Rigid PVC |
|---|---|---|---|
| Product: | Hollow Door Panel | Mould Size: | Wide 1000mm |
| Mould Material: | 3Cr17 | Product Name: | UPVC Hollow Door Mould |
| Surface Treatment: | Polishing | Color: | Silver |
| Keyword: | Mould Maker | Usage: | Indoor |
| Service: | 24 Hours Online | Mould Life: | 5 Years |
| Application: | Household Product Mold | ||
Product Description
Product Description
Specifications

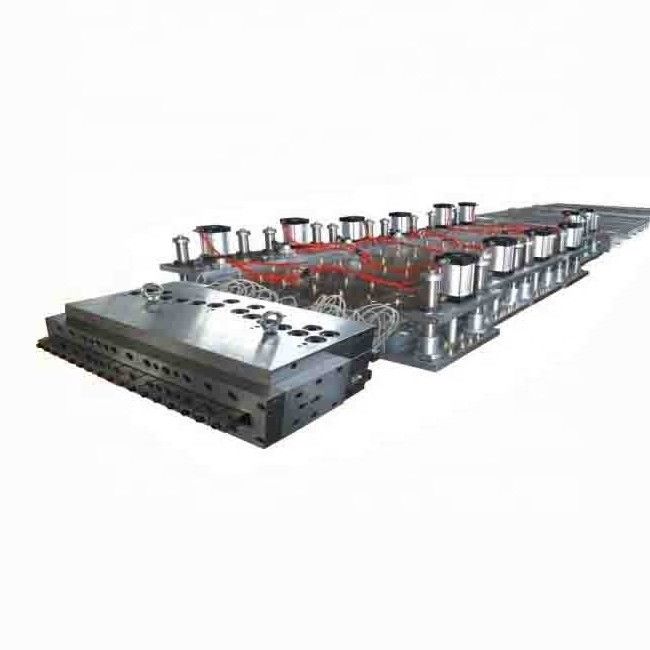

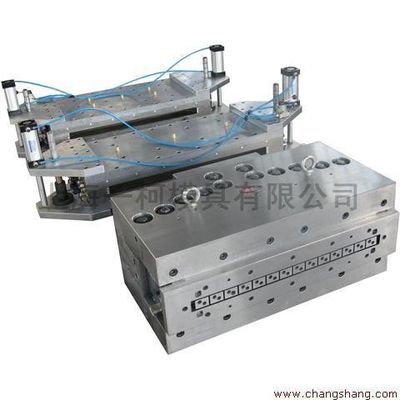

Standard configuration: die head + calibrator + water tank

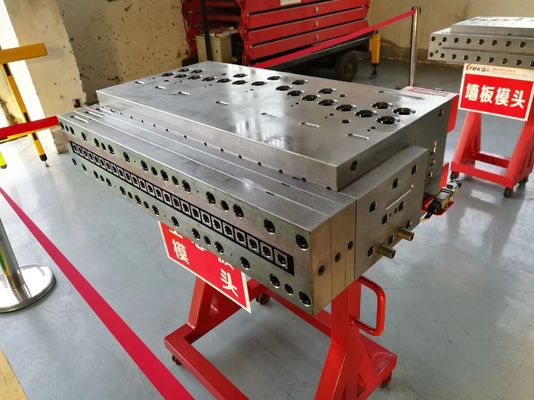

Die head | ||
Name | 1000Rigid PVC Double Door mould | |
Die wide | 1000mm | |
Strand | single | |
Material | 3Cr17 | |
Delievery | 35 Working days | |
Calibrator | ||
Length | 300mm x 2 | |
Height adjustment | Air/Oil - cylinder | |
Cooling | Transverse circulating water cooling | |
Vacuum | Vacuum chamber formed by upper and lower boards | |
Screw | Stainless steel screw | |
Water tank | ||
Length | 2000mm x 1 | |
Cooling | Water cooling | |
Vacuum | Vacuum is formed by pumping | |
Screw | Stainless steel screw | |

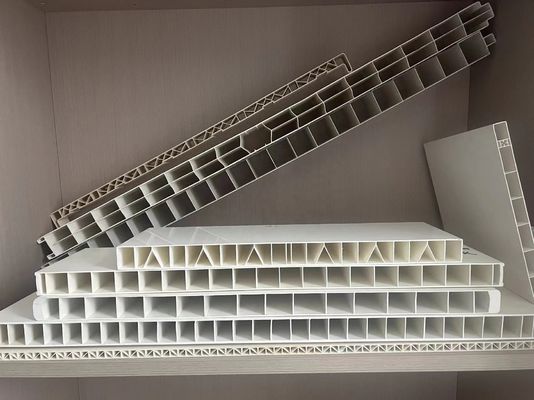

Finished Product Samples
Company Information
Enterprise Strength
We have three companies respectively in Huangshi, Wuxi and Shanghai.
Development 1993--2018
1993---Set up
(One of the earliest extrusion mould pioneers in China)
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould)
2002---Research and develop PVC WPC & PE mould
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan
2004---Research PVC foam board
2005---Sales exceed 10 million & New factory(15000m2)
2007---Set up Shanghai eko Mould Co., Ltd
2008---Sales exceed 20 million yuan
2009---Research foam board crust technology
1993---Set up
(One of the earliest extrusion mould pioneers in China)
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould)
2002---Research and develop PVC WPC & PE mould
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan
2004---Research PVC foam board
2005---Sales exceed 10 million & New factory(15000m2)
2007---Set up Shanghai eko Mould Co., Ltd
2008---Sales exceed 20 million yuan
2009---Research foam board crust technology
2013---Set up joint-venture in outer Mongolia
2013---Sales exceed 50 million yuan
2014---Foreign trade sales exceed 50 million yuan
2016---Spread new product & technology of wall pane
2017---Set up (EKO)Shanghai Yuhao Plastics Co., Ltd
2017---Set up (EKO) Wuxi Jiuke Mould Co., Ltd
2017---Sales exceed 80 million yuan
2018---Unified use the brand---EKO
Huangshi Hongda Plastic Mould Co., Ltd | ||||||
(EKO)Huangshi Hongda Plastic Mould Co., Ltd, located in Huangshi, the City of Mould, which is the leading enterprise in the mould industry. And its annual output can achieve 1,500 sets of mould.
Shanghai Yuhao Plastics Co., Ltd | ||||||
(EKO)Shanghai Yuhao Plastics Co., Ltd
Certifications
As a professional extrusion mould manufacturer with years of experience accumulation, we have created our own unique and perfect theory of extrusion integrated system. We are in the leading level in the filed of extrusion mould and obtain more than 10 national patents.
Corporate Culture
OUR CUSTOMERS, OUR FRIENDS
In the world, our products are exported to over 40 countries and districts.
We are proud to have friends all over the world.
Technology & Service
Professional Technology
We provide the " turn-key-project " for the clients from material formula, operation technique,
extruder type selection to mould technique.

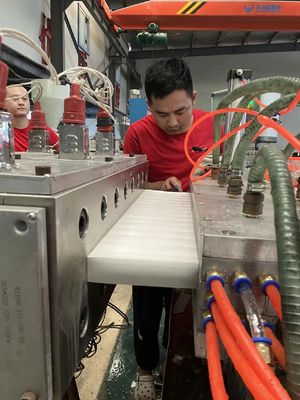

Mould Testing & After-Sales Service
Mould test is one of the most important element of the quality guarantee. We have a testing center and six advanced extrusion lines. Simulation in extrusion production testing offers guarantee for the mould before delivery, shorten testing time in your factory and help you to reduce the cost.
Our experienced technicians will give you the best service. We promise: In China, 360 days guarantee period, sending perfect service to your factory within 48 hours.
Vision: To be the top of extrusion mould manufacturer
Spirit: Professional, Efficient, Faithful
Style: Fast, Exact, Constant
Packing
NON-FUMIGATION WOODEN CASES
FAQ
1. Do you charge for the product samples of the mould?
We provide free samples ,but the freight charges need customers pay.
2. Do you offer other products besides extrusion mould and parts ?
Yes. Besides extrusion mould and parts, We also offer extrusion products, such as pvc profiles, wpc door and frame, wall panel, spc & wpc flooring and so on. What's more, we offer chemical material and additives, extrusion machinery and parts and other equipment as well.
3. How about payment term ?
30% deposit before production and 70% balance payment before shipment
4. How about the production time ?
45 working days after the down payment reach our bank account and all the documents and drawings for production confirmed with signature.(The time does not include the mould trial in China)
