Good feeding performence
Better dispersion and mixing
HIgh-speed screw operation
Uniform mixing
Stable extrusion
Good plasticization
Wide application range
Long service life
 |
Customized 80/156 Conical Twin Screw Extruder for PVC/PE/PP Profile Extrusion at Best
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Yuhao |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/pieces 1-2 pieces |
| Packaging Details: | Wrapped by films, packed in cartons or pallets or wooden boxes. |
| Supply Ability: | 30 Piece/Pieces per Month |
|
Detail Information |
|||
| Condition: | New | Plastic Processed: | PVC, WPC, Wood-plastic, PE/PP |
|---|---|---|---|
| Application: | Bar, PIPE, Sheet, Film, Profile, Plates, Pelletizing | Screw Design: | Double-screw |
| Twin Screw Type: | Co-rotating Conical Twin-screw | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 80/156 | Screw L/D Ratio: | Unapplicable |
| Screw Speed (rpm): | 34 Rpm | Showroom Location: | None |
| Voltage: | 380V Or Due To Request | Dimension(L*W*H): | 4.7*1.5*2.4m |
| Power (kW): | 75 | Weight: | 5500 KG |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Applicable Industries: | Hotels, Manufacturing Plant, Machinery Repair Shops, Restaurant, Home Use, Construction Works , Manufacturing Extrusion | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Pump, Gear, PLC, Engine, Gearbox, Screw |
| Machinery Test Report: | Provided | Extruder: | Twin Screw Extruder |
| Machine Type: | Pvc/PE/PP Profile Extrusion Machine | Product Type: | Plate/film/pipe/profile |
| Color: | Customized | Suitable Material: | Pvc/PE/PP |
| After Warranty Service: | Video Technical Support | Marketing Type: | Ordinary Product |
| Port: | Shanghai Port | ||
Product Description
Product Overview

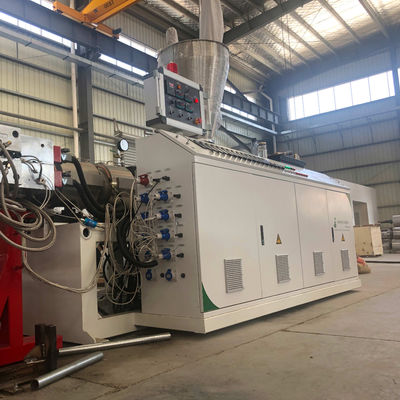

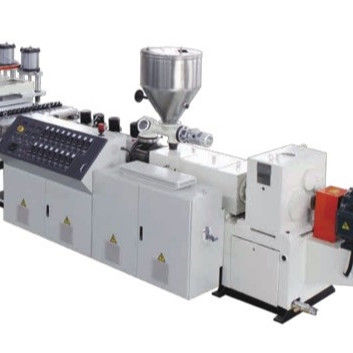

80/156 Conical Twin Screw extruder
SJSZseries conical twin screw extruder is a kind of high efficiency equipment for plastic extrusion. It is mainly composed by force feeder, soft plasticization screw and barrel, high precision gearbox, exhaust system. It has features of even mixing, better plasticization, stable working, high capacity, and it is suitable for produce PVC products from mixed powder. With different mould and other auxiliary equipments, it can produce plastic pipe, profile, board, sheet, granules and so on.
FEATURES AT A GLANCE
Front elevation
Screen elevation
Left elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Screw Diameter | 80/156mm | ||
2 | Max. Speed | 75rpm | ||
3 | Main Motor | 55kw | ||
4 | Out Put | 250-380kg/h | ||
5 | Centre Height | 1050mm | ||
6 | Net Weight | 5500kg | ||
7 | L*W*H | 4.7*1.5*2.4m |
PRODUCT CONFIGURATION
80/156 Screw
Siemens Bede Motor
ABB Frequency converter
SALES AND SERVICE NETWORK
FAQ
1. Could you offer samples ?Yes, we can offer free samples while the freight cost will be on your charge.
2. Do you offer other products besides outdoor WPC decking ?
As a trading company, we offer whole package solution of profile extrusion machinery and extrusion product such as PVC profiles,
WPC, SPC, wall panels and so on. And we also offer packing machinery for tea, liquid, powder and granules.
3. How about the delivery time ?
Bulk production will be finished within 30 days since 30% of down payment receipt. While samples will be prepared within 5 days.
2. Do you offer other products besides outdoor WPC decking ?
As a trading company, we offer whole package solution of profile extrusion machinery and extrusion product such as PVC profiles,
WPC, SPC, wall panels and so on. And we also offer packing machinery for tea, liquid, powder and granules.
3. How about the delivery time ?
Bulk production will be finished within 30 days since 30% of down payment receipt. While samples will be prepared within 5 days.
