Table length: 6000mm Table width: 1800mm Distance between aluminum track: 1100mm Vacuum pump power and quantity: 5.5 KW x 2set 11
KW x 2setWater pump power and quantity: 5.5kw x 1set; 1.5kw x 1set Quantity of air nozzle: 60 pcs (marked in yellow) Quantity of
water nozzle: 60 pcs (marked in blue) Consumption of cooling water：20 m3/h
 |
Sheet Production PVC WPC Foam Board Extrusion Line with Unapplicable Screw L/D Ratio
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | Wrapped by films, packed by wood pallets or wooden boxes. |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Plastic Processed: | PVC, Wood-plastic |
|---|---|---|---|
| Application: | Sheet, Plates | Screw Design: | Double-screw |
| Twin Screw Type: | Cone Double Screw | Screw Material: | 38CrMoALA |
| Screw Diameter (mm): | 110 | Screw L/D Ratio: | Unapplicable |
| Screw Speed (rpm): | 34 Rpm | Showroom Location: | None |
| Weight: | 15000 KG | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Applicable Industries: | Manufacturing Plant |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw | Machinery Test Report: | Provided |
| Name: | PVC Foam Board Production Line | Raw Material: | PVC Powder |
| After Warranty Service: | Service Machinery Overseas | Usage: | Plastic Extrusion |
| Processing Type: | Exturding Machine | Keywords: | PVC Foam Extruder Line |
| Product Type: | Extrusion Production | After-sales Service Provided: | Overseas Service Provided |
| Final Product: | Board | Type: | Excruder |
| Marketing Type: | Other | Port: | Shanghai |
Product Description
Products Description
PVC foam board extrusion line
Equipment list | ||||
1 | 80/156 Conical Twin Screw Extruder | 1 SET | ||
2 | PVC Foam Board Mould | 1 SET | ||
3 | YFD1000 Vacuum Calibration Table | 1 SET | ||
4 | YFY1000 Haul-off Unit | 1 SET | ||
5 | Dust-free cutting machine | 1 SET | ||
6 | YFF1000 Stacker | 1 SET | ||

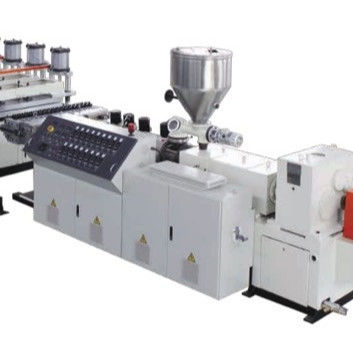

80/156 Conical Twin Screw Extruder
Screw & Barrel
Screw material: 38CrMoAlA, nitrogen treatment
Max. designed output: 450 ~ 500 kg/h
Blower fan power: 0.55kw/set (4 set)
Screw diameter: ￠92mm 188mm
Main motor system
Main AC motor power: WEG motor, 110KW , 380V, 50Hz Main motor adjustment: Imported brand
ABB inverter controlling
Dosing feeding System
Feeding motor power: 1.1kw, 3 phase asynchronous motor Controlled by Imported brand AC frequency converter
Constant temperature oil system (2 set)
Power of motor: AC motor, 0.75KW
Oil temperature range: 50~200℃
Power of heating oil:9 KW
Vacuum exhaust system
Vacuum degree: 0~ -0.075 Mpa
Vacuum pump power: 5.5 Kw
Vacuum pump: 1 set
Electric control system
Siemens PLC controlling system
AC inventor: Imported brand ABB
Transmission system
Teeth hardening, precision gear grind treatment.
Water cooling device
High torque output
Alarming system
Optical-electronic protective device for dislocation of screw
Oil-shortage alarming device
Over-current prevention
Material level alarming

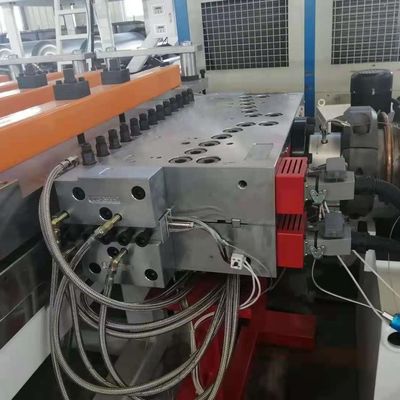

PVC foam board mould
you can offer your own product design to us or use our design for the panel
YFD1000 Vacuum calibration table

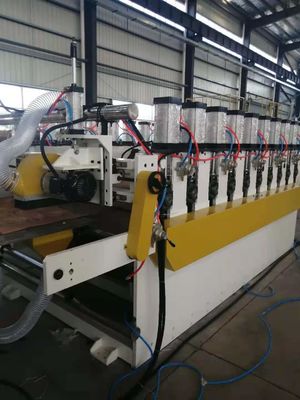

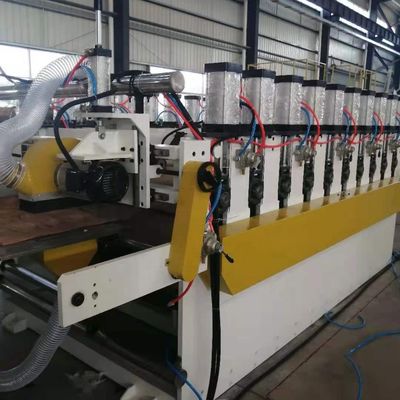

YFY1000 Haul-off Unit
Quantity of caterpillar: 2Controlled by imported frequency converter-ABB Length of haul-off caterpillar:3000mm
Haul-off speed 0.5~2m/min
Haul-off speed 0.5~2m/min

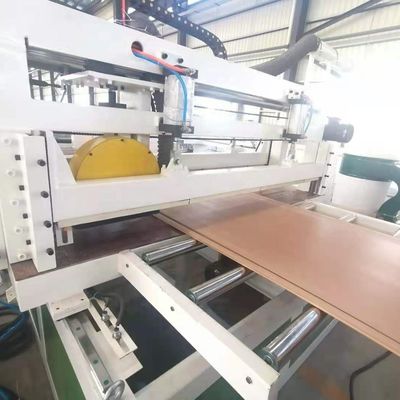

Dust-free cutting machine
Power of motor: 2.2 KW
Max. Cutting width: 1000mm
Max. Cutting height: 60mm
Power of sucking-dust-fan: 0.75 KW*2set
Power of sucking-dust-fan: 0.75 KW*2set
YFF1000 Stacker
Length of stacker: 4m
With automatic meter-calculating device
With automatic meter-calculating device
Form of stacker: Disassembled
Auxiliary Equipment (By Choosen)

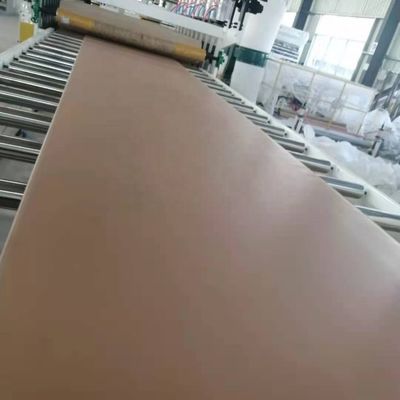

Final Products
