PVC Roof Tile Extrusion Production Line Technology for Plate Sheet Roof Manufacturing
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | EKO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Hige efficiency PVC roof tiles extrusion production line PVC plastic roof tile extruding machine Wrapped with film then packed by standard export wooden pallets or wooden boxes. |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Plastic Processed: | PVC, PET, PC |
|---|---|---|---|
| Application: | Sheet, Plates, Roof Tile | Screw Design: | Double-screw |
| Twin Screw Type: | Conical Twin Screw Extruder | Screw Material: | 38CrMoAlA |
| Screw Diameter (mm): | 80/156 | Screw L/D Ratio: | Unapplicable |
| Screw Speed (rpm): | 34.7 Rpm | Showroom Location: | India, Bangladesh |
| Voltage: | Customized | Dimension(L*W*H): | 4750*1500*2500mm |
| Power (kW): | 55 | Weight: | 10000 KG |
| Warranty: | 1 Year | Key Selling Points: | Good Quality,competitive Price,experienced Support |
| Applicable Industries: | Manufacturing Plant, Construction Works | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| Machinery Test Report: | Provided | Product Name: | Roof Tile Production Line |
| Capacity: | 300 ~ 350 Kg/h | Keywords: | Turn-key Project |
| After-sales Service Provided: | Free Spare Parts | Application Field: | Plate Sheet Roof |
| Plastic Processed: | PVC ASA | Screw Design: | Counter-rotating Conical Twin-screw |
| Screw Speed: | 37RPM | Automatic Grade: | Full-automatic |
| Marketing Type: | Hot Product | Port: | Shanghai Port |
Product Description
Product Description
High efficiency PVC roof tiles extrusion production line PVC plastic roof tile extruding machine
PVC roof tiles extrusion production line | ||||||||
Equipment List | Auxiliary Equipment List | |||||||
1 | Auto feeder | 1 | HL500/1000 Mixer | |||||
2 | SJZS-80/156 Conical Twin Screw Extruder | 2 | PS700 Crusher & 700 Grinding machine | |||||
3 | T-Die | 3 | Miller | |||||
4 | Two Roller Calendar | 4 | Ridge Tile Shaping Machine | |||||
5 | ASA film coating device | 5 | Ridge Tile Oven | |||||
6 | Glazed Tile Shaping Machine | ps: custom choose if any need | (Custom choose these ) | |||||
7 | Cutter | |||||||

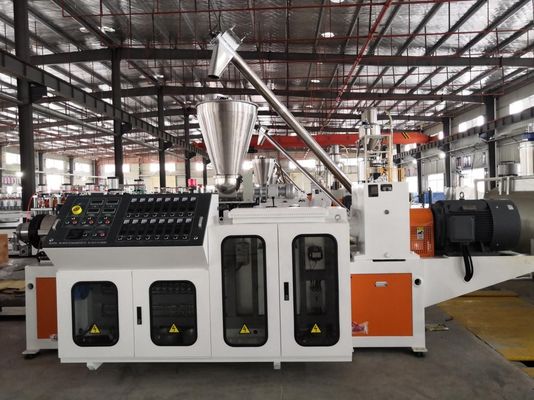

Extrusion System
Screw & Barrel
Screw diameter: ￠80mm 156mm Max. designed output: 300 ~ 350 kg/h Screw material: 38CrMoAlA, nitrogen treatment
Blower fan power: 0.55kw/set (4 set)
Dosing feeding System
Feeding motor power: 1.1kw, 3 phase asynchronous motor Controlled by Imported brand AC frequency converter
Vacuum exhaust system Vacuum pump: 1 set Vacuum pump power: 3Kw Vacuum degree: 0~ -0.075 Mpa
Transmission system High torque output Water cooling device Teeth hardening, precision gear grind treatment.
Main motor system
Main AC motor power: WEG motor, 55kw , 380V, 50Hz Main motor adjustment: Imported brand ABB inverter controlling
Electric control system B&R PLC controlling system； AC inventor: Imported brand ABB
Alarming system Over-current prevention Optical-electronic protective device for dislocation of screw Oil-shortage alarming device Material level alarming;

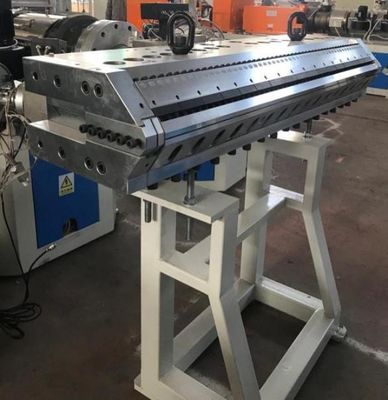

PVC Roof Tile Extrusion Mould
you can offer your own product design to us or use our design for the shape.
Two Roller Calendar
1.Upper and lower roller specification: φ290*1400mm
2.Maximum linear speed: 5m/min.
3.Driving power: 1.1kw*2.
4.Roller material: 45# steel tempered quenching.
5.Roller surface hardness: HRC50 above.
6.Hard chromium plating on roller surface: depth 0.1-0.16mm.
7.The internal structure of the roller: the inside of the roller is designed with multi-head helical runner structure to ensure
the axial temperature uniformity.
8.Speed adjustment: ABB brand
2.Maximum linear speed: 5m/min.
3.Driving power: 1.1kw*2.
4.Roller material: 45# steel tempered quenching.
5.Roller surface hardness: HRC50 above.
6.Hard chromium plating on roller surface: depth 0.1-0.16mm.
7.The internal structure of the roller: the inside of the roller is designed with multi-head helical runner structure to ensure
the axial temperature uniformity.
8.Speed adjustment: ABB brand
Unwinding ASA film device
1. The covering device is placed on the upper of the two-roller Calendar.
2. Roller device adopts simplex position
3. With tensioning device, prevent ASA film from moving
2. Roller device adopts simplex position
3. With tensioning device, prevent ASA film from moving

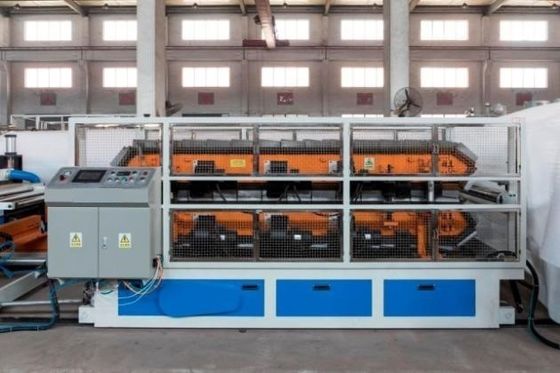

Shaping machine
1.Production speed: 0-4m/min
2.Maximum traction: 50KN.
3.Drive power: 7.5kw.
4.Retraction power: 0.18kw.
5.Mold logarithm: 26 to 30 pairs.
6.Mould material: aluminum alloy, with light weight, high strength, good wear resistance, fast heat dissipation, etc.
7.External air source: displacement of 0.67m to the third /min.
8.Exhaust pressure: 0.7mpa.
9.Cooling mode: fan cooling *12*550w.
10.Scrap cutting: pneumatic cutting.
11.Dimensions: 3000*2000*1700mm.
12.Moving distance front and back: 2000mm.
2.Maximum traction: 50KN.
3.Drive power: 7.5kw.
4.Retraction power: 0.18kw.
5.Mold logarithm: 26 to 30 pairs.
6.Mould material: aluminum alloy, with light weight, high strength, good wear resistance, fast heat dissipation, etc.
7.External air source: displacement of 0.67m to the third /min.
8.Exhaust pressure: 0.7mpa.
9.Cooling mode: fan cooling *12*550w.
10.Scrap cutting: pneumatic cutting.
11.Dimensions: 3000*2000*1700mm.
12.Moving distance front and back: 2000mm.

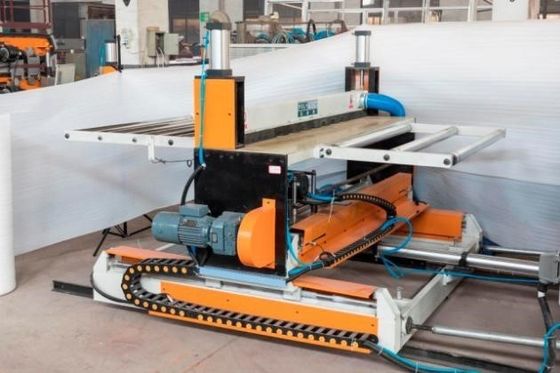

Cutter
1.Cutting form: saw blade type cutting.
2.Cutting machine power: 3kw.
3.Cutting data input: touch screen control, can input 20 sets of data at one time.
4.Suction device power: 3kw.
5.Pneumatic control: smooth operation.
6.Equipped with special adjustable locators to ensure the accuracy of each cutting position.
7.Dimensions: 2000*2500*1730mm

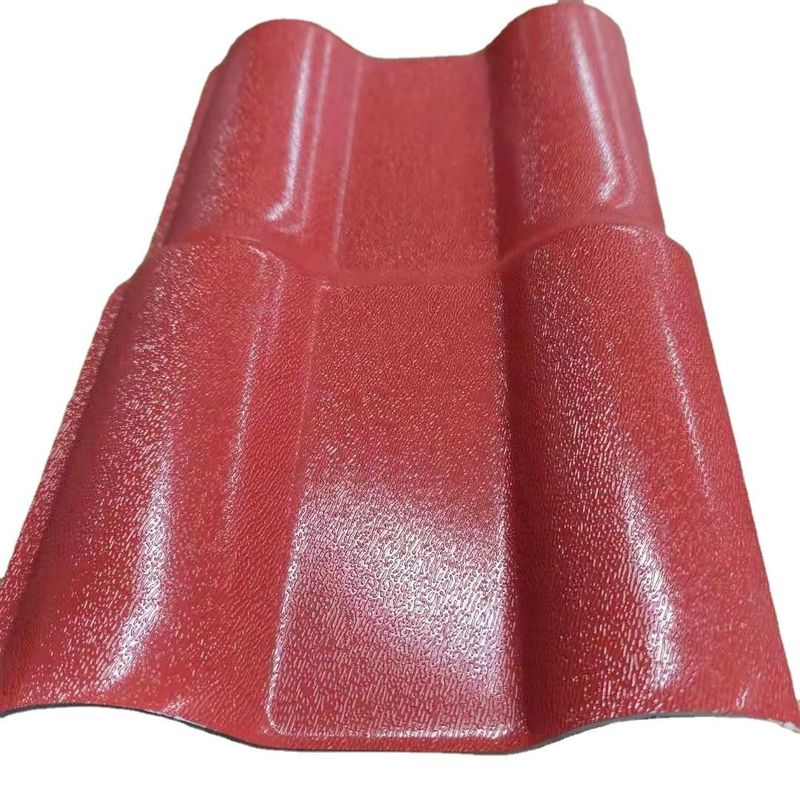

Final Products
