Advanced Double-Screw UPVC/WPC Door Production Line with Customized Voltage
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | EKO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Wrapped with film then packed by standard export wooden pallets or wooden boxes. |
|
Detail Information |
|||
| Condition: | New | Plastic Processed: | WPC |
|---|---|---|---|
| Application: | Door Panel | Screw Design: | Double-screw |
| Twin Screw Type: | Conical Twin Screw Extruder | Screw Material: | 38CrMoAlA |
| Screw Diameter (mm): | 92/188mm | Screw L/D Ratio: | 33:1 |
| Screw Speed (rpm): | 34.7 Rpm | Showroom Location: | None |
| Voltage: | Customized | Dimension(L*W*H): | 5750*1650*2760mm |
| Power (kW): | 110 | Weight: | 9000 KG |
| Warranty: | 1 Year | Key Selling Points: | Good Quality,competitive Price,experienced Support |
| Applicable Industries: | Manufacturing Plant, Construction Works | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Other |
| Machinery Test Report: | Provided | Product Name: | WPC Hollow Panel Production Line |
| Usage: | Door | Raw Material: | Wpc |
| Capacity: | 450 ~ 500 Kg/h | Keywords: | Turn-key Project |
| After-sales Service Provided: | Free Spare Parts | Processing Type: | Extrusion |
| Product Type: | Extrusion Production | Final Product: | Panel |
| Color: | Color Choice(DIY) | ||
Product Description
Product Description

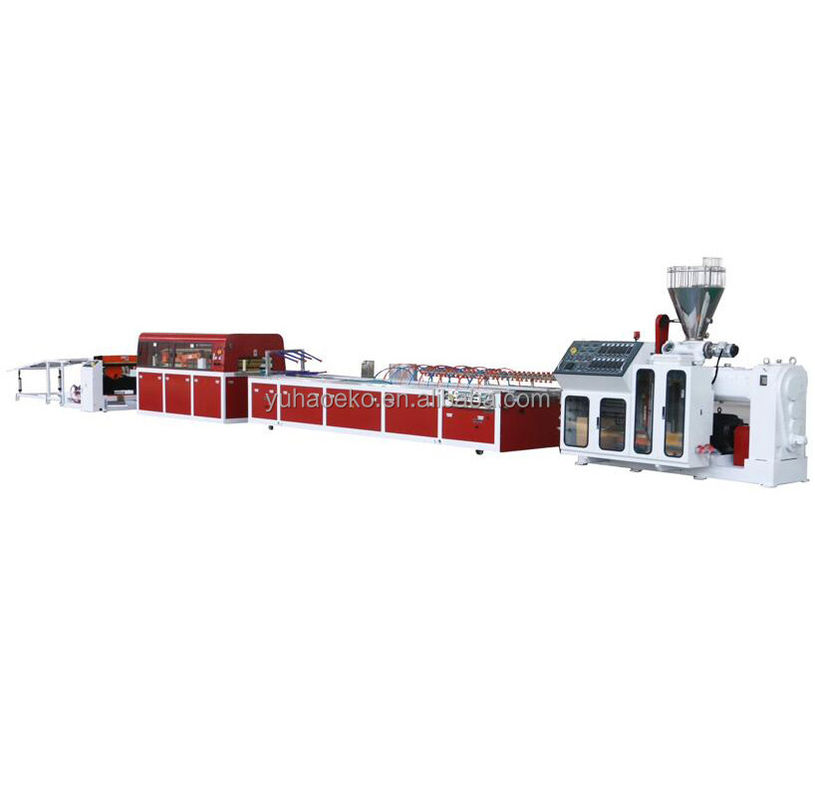

Wood Plastic Composite Door Panel Extrusion Line
The Processing of WPC Product
PVC Wood fiber additives → Hot mixing → cold mixing → conical extrusion → extrusion mould → calibration cooling → haul off & cutting → extrusion products → surface treatment → final products
Wood Plastic Door Panel Extrusion Line | ||||||||
Equipment List | Auxiliary Equipment List | |||||||
1 | 92/188 Conical Twin Screw Extruder | 1 | HL500/1000 Mixer | |||||
2 | PVC Wood Plastic Door Panel Mould | 2 | PS700 Crusher & 700 Grinding machine | |||||
3 | YFD1000 Vacuum Calibration Table | 3 | KHAW-50D Air cooling chiller system with water pump | |||||
4 | YFY1000 Haul-off Unit | 4 | Door panel hot stamping machine | |||||
5 | YFQ1000 Cutter | 5 | Door locking hole drilling machine | |||||
6 | YFF1000 Stacker | ps: custom choose if any need | (Custom choose these ) | |||||

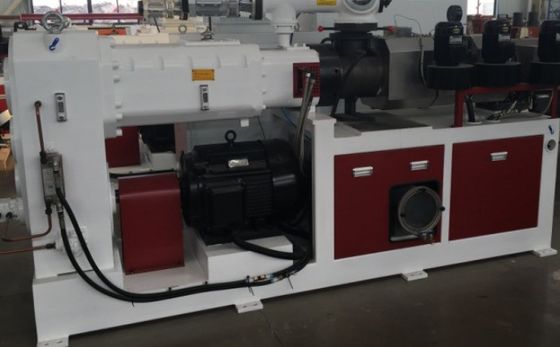

Extrusion System
Screw & Barrel
Screw diameter: ￠92mm 188mm Max. designed output: 450 ~ 500 kg/h Screw material: 38CrMoAlA, nitrogen treatment
Blower fan power: 0.55kw/set (4 set)
Dosing feeding System
Feeding motor power: 1.1kw, 3 phase asynchronous motor Controlled by Imported brand AC frequency converter
Vacuum exhaust system Vacuum pump: 1 set Vacuum pump power: 5.5 Kw Vacuum degree: 0~ -0.075 Mpa
Transmission system High torque output Water cooling device Teeth hardening, precision gear grind treatment.
Main motor system
Main AC motor power: WEG motor, 110KW , 380V, 50Hz Main motor adjustment: Imported brand ABB inverter controlling
Constant temperature oil system (2 set) Power of heating oil:9 KW Oil temperature range: 50~200℃ Power of motor: AC motor, 0.75KW
Electric control system Siemens PLC controlling system； AC inventor: Imported brand ABB
Alarming system Over-current prevention Optical-electronic protective device for dislocation of screw Oil-shortage alarming device Material level alarming;
PVC Wood Plastic Door Panel mould
you can offer your own product design to us or use our design for the panel

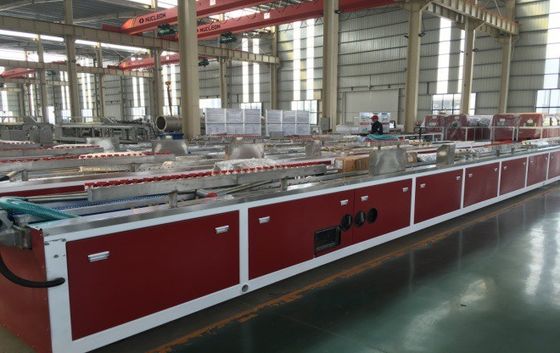

YFD1000 Vacuum calibration table
Table length: 6000mm Table width: 1800mm Distance between aluminum track: 1100mm Vacuum pump power and quantity: 5.5 KW x 2set 11 KW x 2set
Water pump power and quantity: 5.5kw x 1set; 1.5kw x 1set Quantity of air nozzle: 60 pcs (marked in yellow) Quantity of water nozzle: 60 pcs (marked in blue) Consumption of cooling water：20 m3/h

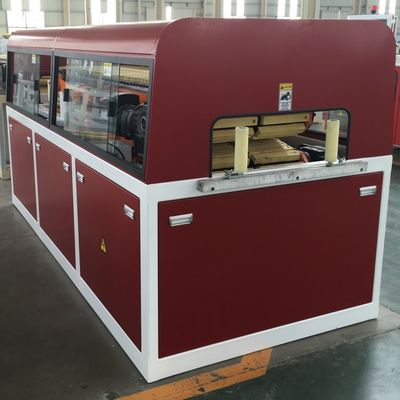

YFY1000 Haul-off Unit
Quantity of caterpillar: 2
Controlled by imported frequency converter-ABB Length of haul-off caterpillar:3000mm
Haul-off speed 0.5~2m/min
YFQ1000 Cutter
Power of motor: 2.2 KW Max. Cutting width: 1000mm Max. Cutting height: 60mm
Power of sucking-dust-fan: 0.75 KW*2set

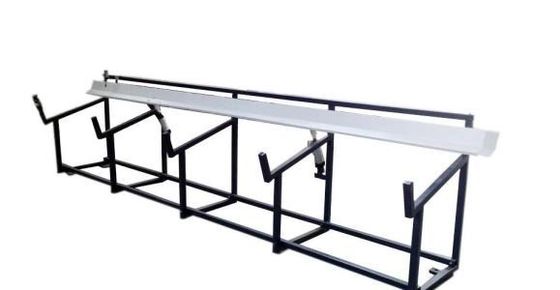

YFF1000 Stacker
Length of stacker: 4m
With automatic meter-calculating device Form of stacker: Disassembled c
Hot Stamping Machine
Door locking hole drilling machine
Final Products
Recommend Products
Company Information
Enterprise Strength melt blown fabric machine for face mask
We have three companies respectively in Huangshi, Wuxi and Shanghai.
Development 1993--2018
1993---Set up
(One of the earliest extrusion mould pioneers in China)
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould)
2002---Research and develop PVC WPC & PE mould
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan
2004---Research PVC foam board
2005---Sales exceed 10 million & New factory(15000m2)
2007---Set up Shanghai eko Mould Co., Ltd
2008---Sales exceed 20 million yuan
(One of the earliest extrusion mould pioneers in China)
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould)
2002---Research and develop PVC WPC & PE mould
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan
2004---Research PVC foam board
2005---Sales exceed 10 million & New factory(15000m2)
2007---Set up Shanghai eko Mould Co., Ltd
2008---Sales exceed 20 million yuan
2009---Research foam board crust technology
2010---Produce wide board products
2013---Set up joint-venture in outer Mongolia
2013---Sales exceed 50 million yuan
2014---Foreign trade sales exceed 50 million yuan
2016---Spread new product & technology of wall pane
2017---Set up (EKO)Shanghai Yuhao Plastics Co., Ltd 2017---Set up (EKO) Wuxi Jiuke Mould Co., Ltd
2017---Sales exceed 80 million yuan
2018---Unified use the brand---EKO
Huangshi Hongda Plastic Mould Co., Ltd | ||||||
(EKO)Huangshi Hongda Plastic Mould Co., Ltd, located in Huangshi, the City of Mould, which is the leading enterprise in the mould industry. And its annual output can achieve 1,500 sets of mould.
Shanghai Yuhao Plastics Co., Ltd | ||||||
(EKO)Shanghai Yuhao Plastics Co., Ltd
A trading company based on Hongda and Eko mould company, which has a wide range, good quality, reasonable prices and stylish designs. Our products are extensively used in many different fields and industries.
melt blown non woven fabric melt blown
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
OUR CUSTOMERS, OUR FRIENDS
melt blown non woven fabric melt blown
In the world, our products are exported to over 40 countries and districts.
We are proud to have friends all over the world.n
Technology & Service
Testing & After-Sales Service melt blown non woven fabric melt blown filter for face mask
Test is one of the most important element of the quality guarantee. We have a testing center and six advanced extrusion lines. Simulation in extrusion production testing offers guarantee for the machine before delivery, shorten testing time in your factory and help you to reduce the cost.
Our experienced technicians will give you the best service. We promise: In China, 360 days guarantee period, sending perfect service to your factory within 48 hours.
Professional Technology
We provide the " turn-key-project " for the clients from material formula, operation technique,
extruder type selection to mould technique.
Vision: To be the top of extrusion mould manufacturer
Spirit: Professional, Efficient, Faithful
Style: Fast, Exact, Constant
Packing
Wrapped with film then packed by standard export wooden pallets for extruder and wooden boxes for moulds.
FAQ
1. What kind of service can we expect from your side during this special period of pandemic ？
We all are trying our best to shorten the delivery time, and we'd love to offer some free medical supplies to help you fight against it. Regarding to our machinery, we are offering on line inspection test and on line instructions to help you install and start up the machinery.
2. What is delivery time of machinery and how about the payment terms ?
It will be different according to different model machines, usually for small ones need 45 working days. And the payment term is 50% as down payment and 50% before delivery.
3. What is your main business scope ?
As a trading company, we offer whole package solution of profile extrusion machinery and extrusion product such as door panel, UPVC profiles,WPC foam board, SPC flooring, wall panels, PP board, PE decking and so on.
4. Do you charge for the product samples of ?
We provide free samples ,but the freight charges need customers pay.
