Conical Twin Screw PVC Glazed Roof Sheet Extruding Machine with ABB Inverte
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | EKO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | PVC glazed roof sheet tiles extruding machine /extrusion line production line Wrapped with film then packed by standard export wooden pallets or wooden boxes. |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Plastic Processed: | PVC, PET, PC |
|---|---|---|---|
| Application: | Sheet, Plates, Roof Tile | Screw Design: | Double-screw |
| Twin Screw Type: | Conical Twin Screw Extruder | Screw Material: | 38CrMoAlA |
| Screw Diameter (mm): | 80/156 | Screw L/D Ratio: | Unapplicable |
| Screw Speed (rpm): | 34.7 Rpm | Showroom Location: | India, Bangladesh, None |
| Voltage: | Customized | Dimension(L*W*H): | 4750*1500*2500mm |
| Power (kW): | 55 | Weight: | 5500 KG |
| Warranty: | 1 Year | Key Selling Points: | Good Quality,competitive Price,experienced Support |
| Applicable Industries: | Manufacturing Plant, Construction Works | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| Machinery Test Report: | Provided | Product Name: | PVC Plastic Roof Tile Making Machine |
| Usage: | Roof Tile | Raw Material: | PVC |
| Capacity: | 300 ~ 350 Kg/h | Keywords: | Turn-key Project |
| After-sales Service Provided: | Free Spare Parts | Automatic Grade: | Automtic |
| Inverter: | ABB Brand | Motor: | Siemens Beide |
| Contactor: | Siemens Contactor | Marketing Type: | Hot Product |
| Port: | Shanghai Port | ||
Product Description
Product Description

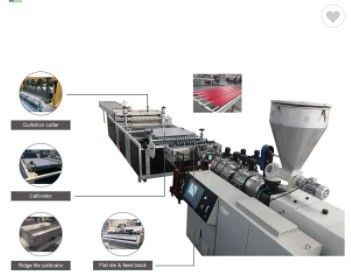

PVC glazed roof sheet tiles extruding machine production line PVC plastic roof tile making machine
Wood Plastic Door Panel Extrusion Line | ||||||||
Equipment List | Auxiliary Equipment List | |||||||
1 | Auto feeder | 1 | HL500/1000 Mixer | |||||
2 | SJZS-80/156 Conical Twin Screw Extruder | 2 | PS700 Crusher & 700 Grinding machine | |||||
3 | T-Die | 3 | Miller | |||||
4 | Two Roller Calendar | 4 | Ridge Tile Shaping Machine | |||||
5 | ASA film coating device | 5 | Ridge Tile Oven | |||||
6 | Glazed Tile Shaping Machine | ps: custom choose if any need | (Custom choose these ) | |||||
7 | Cutter | |||||||

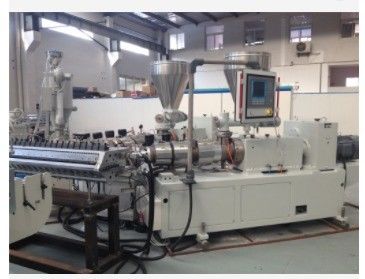

Extrusion System
Screw & Barrel
Screw diameter: ￠80mm 156mm Max. designed output: 300 ~ 350 kg/h Screw material: 38CrMoAlA, nitrogen treatment
Blower fan power: 0.55kw/set (4 set)
Dosing feeding System
Feeding motor power: 1.1kw, 3 phase asynchronous motor Controlled by Imported brand AC frequency converter
Vacuum exhaust system Vacuum pump: 1 set Vacuum pump power: 3Kw Vacuum degree: 0~ -0.075 Mpa
Transmission system High torque output Water cooling device Teeth hardening, precision gear grind treatment.
Main motor system
Main AC motor power: WEG motor, 55kw , 380V, 50Hz Main motor adjustment: Imported brand ABB inverter controlling
Electric control system B&R PLC controlling system； AC inventor: Imported brand ABB
Alarming system Over-current prevention Optical-electronic protective device for dislocation of screw Oil-shortage alarming device Material level alarming;
PVC Roof Tile Extrusion Mould
you can offer your own product design to us or use our design for the shape.

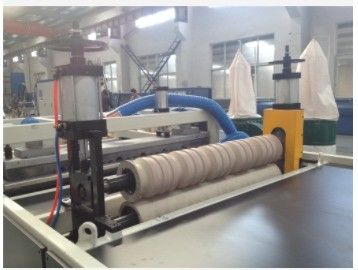

Two Roller Calendar
1.Upper and lower roller specification: φ290*1400mm
2.Maximum linear speed: 5m/min.
3.Driving power: 1.1kw*2.
4.Roller material: 45# steel tempered quenching.
5.Roller surface hardness: HRC50 above.
6.Hard chromium plating on roller surface: depth 0.1-0.16mm.
7.The internal structure of the roller: the inside of the roller is designed with multi-head helical runner structure to ensure
the axial temperature uniformity.
8.Speed adjustment: ABB brand
2.Maximum linear speed: 5m/min.
3.Driving power: 1.1kw*2.
4.Roller material: 45# steel tempered quenching.
5.Roller surface hardness: HRC50 above.
6.Hard chromium plating on roller surface: depth 0.1-0.16mm.
7.The internal structure of the roller: the inside of the roller is designed with multi-head helical runner structure to ensure
the axial temperature uniformity.
8.Speed adjustment: ABB brand
Unwinding ASA film device
1. The covering device is placed on the upper of the two-roller Calendar.
2. Roller device adopts simplex position
3. With tensioning device, prevent ASA film from moving
2. Roller device adopts simplex position
3. With tensioning device, prevent ASA film from moving

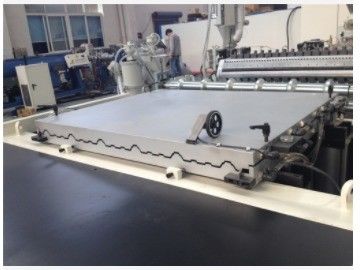

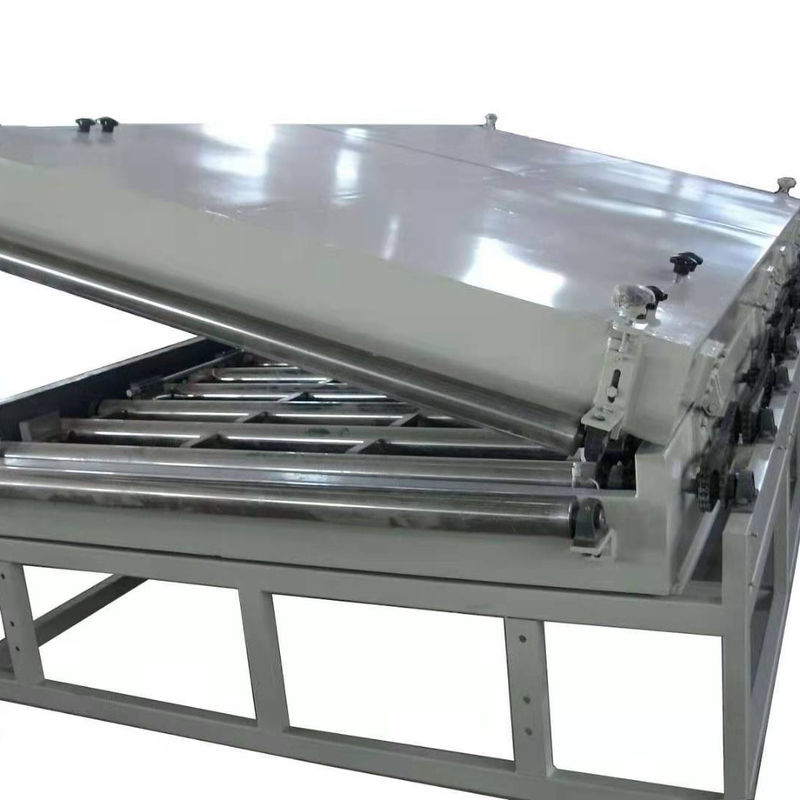

Shaping machine
1.Production speed: 0-4m/min
2.Maximum traction: 50KN.
3.Drive power: 7.5kw.
4.Retraction power: 0.18kw.
5.Mold logarithm: 26 to 30 pairs.
6.Mould material: aluminum alloy, with light weight, high strength, good wear resistance, fast heat dissipation, etc.
7.External air source: displacement of 0.67m to the third /min.
8.Exhaust pressure: 0.7mpa.
9.Cooling mode: fan cooling *12*550w.
10.Scrap cutting: pneumatic cutting.
11.Dimensions: 3000*2000*1700mm.
12.Moving distance front and back: 2000mm.
2.Maximum traction: 50KN.
3.Drive power: 7.5kw.
4.Retraction power: 0.18kw.
5.Mold logarithm: 26 to 30 pairs.
6.Mould material: aluminum alloy, with light weight, high strength, good wear resistance, fast heat dissipation, etc.
7.External air source: displacement of 0.67m to the third /min.
8.Exhaust pressure: 0.7mpa.
9.Cooling mode: fan cooling *12*550w.
10.Scrap cutting: pneumatic cutting.
11.Dimensions: 3000*2000*1700mm.
12.Moving distance front and back: 2000mm.

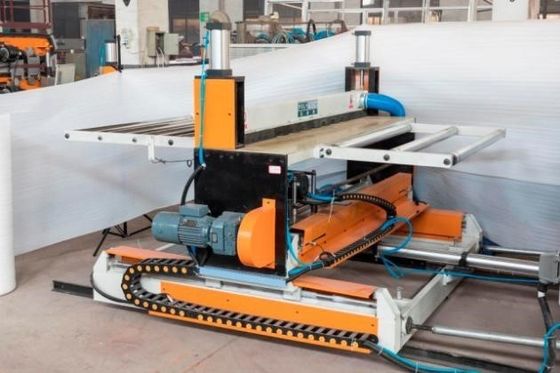

Cutter
1.Cutting form: saw blade type cutting.
2.Cutting machine power: 3kw.
3.Cutting data input: touch screen control, can input 20 sets of data at one time.
4.Suction device power: 3kw.
5.Pneumatic control: smooth operation.
6.Equipped with special adjustable locators to ensure the accuracy of each cutting position.
7.Dimensions: 2000*2500*1730mm
Final Products
Company Information
Enterprise Strength melt blown fabric machine for face mask
We have three companies respectively in Huangshi, Wuxi and Shanghai.
Development 1993--2018
1993---Set up
(One of the earliest extrusion mould pioneers in China)
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould)
2002---Research and develop PVC WPC & PE mould
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan
2004---Research PVC foam board
2005---Sales exceed 10 million & New factory(15000m2)
2007---Set up Shanghai eko Mould Co., Ltd
2008---Sales exceed 20 million yuan
(One of the earliest extrusion mould pioneers in China)
1996---Hongda Plastic Mould Co., Ltd (PVC profile mould)
2002---Research and develop PVC WPC & PE mould
2003---Gain ISO9001(2000) & Sales exceed 5 million yuan
2004---Research PVC foam board
2005---Sales exceed 10 million & New factory(15000m2)
2007---Set up Shanghai eko Mould Co., Ltd
2008---Sales exceed 20 million yuan
2009---Research foam board crust technology
2010---Produce wide board products
2013---Set up joint-venture in outer Mongolia
2013---Sales exceed 50 million yuan
2014---Foreign trade sales exceed 50 million yuan
2016---Spread new product & technology of wall pane
2017---Set up (EKO)Shanghai Yuhao Plastics Co., Ltd 2017---Set up (EKO) Wuxi Jiuke Mould Co., Ltd
2017---Sales exceed 80 million yuan
2018---Unified use the brand---EKO
Huangshi Hongda Plastic Mould Co., Ltd | ||||||
(EKO)Huangshi Hongda Plastic Mould Co., Ltd, located in Huangshi, the City of Mould, which is the leading enterprise in the mould industry. And its annual output can achieve 1,500 sets of mould.
Shanghai Yuhao Plastics Co., Ltd | ||||||
(EKO)Shanghai Yuhao Plastics Co., Ltd
A trading company based on Hongda and Eko mould company, which has a wide range, good quality, reasonable prices and stylish designs. Our products are extensively used in many different fields and industries.
melt blown non woven fabric melt blown
Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
OUR CUSTOMERS, OUR FRIENDS
melt blown non woven fabric melt blown
In the world, our products are exported to over 40 countries and districts.
We are proud to have friends all over the world.n
Technology & Service
Testing & After-Sales Service melt blown non woven fabric melt blown filter for face mask
Test is one of the most important element of the quality guarantee. We have a testing center and six advanced extrusion lines. Simulation in extrusion production testing offers guarantee for the machine before delivery, shorten testing time in your factory and help you to reduce the cost.
Our experienced technicians will give you the best service. We promise: In China, 360 days guarantee period, sending perfect service to your factory within 48 hours.
Professional Technology
We provide the " turn-key-project " for the clients from material formula, operation technique,
extruder type selection to mould technique.
Vision: To be the top of extrusion mould manufacturer
Spirit: Professional, Efficient, Faithful
Style: Fast, Exact, Constant
Packing
Wrapped with film then packed by standard export wooden pallets for extruder and wooden boxes for moulds.
Contact Us
Shanghai Yuhao Plastic Co.,Ltd
Address: Floor 3,building 15,Huatai Center,Jinyun Road,Jiangqiao,shanghai
melt blown non woven fabric melt blown
Contact person: Eric Yang
Tel/wechat/whatsapp: +86 13918104461
E-Mail: 503@hdeko.com
Want to Know more details about this product
